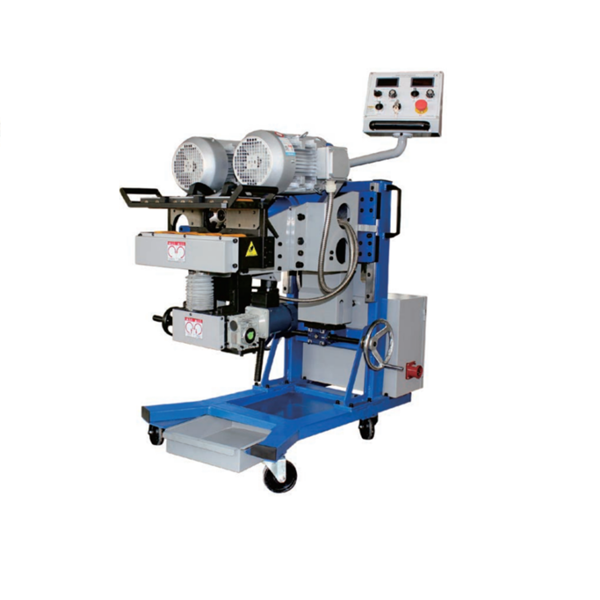

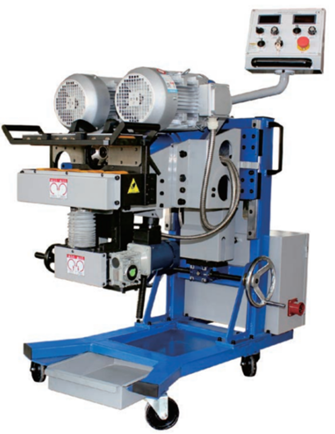

| Turnable Edge Milling Machine |
| Power supply : AC 380V, 50 Hz |
| Total power : 4920 W |
| Spindle speed : 500 – 1050 r/min |
| Feed speed : 0 – 1500 mm/min |
| Clamp thickness : 6 – 80 mm |
| Clamp width : > 80 mm |
| Process length : > 300 mm |
| Bevel angle : 0o ÷ ±60o adjustable |
| Single bevel width : 0 – 20 mm |
| Bevel width : 0 – 70 mm |
| Cutter plate : Ø80 mm |
| Cutter Q’ty : 6 or 8 pcs |
| Worktable height : 790 – 810 mm |
| Travel space : 1200*800 mm |
| Net weight : 310 kg |
