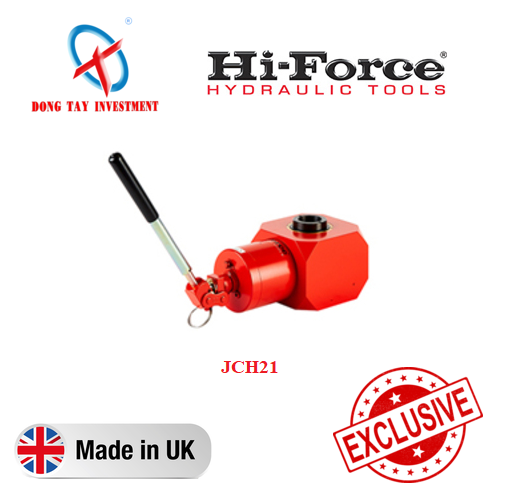

The JCH compact jacks are ideally suited for tooling, maintenance and tensioning applications, where a pulling force is required. Lightweight, easy to operate and manufactured from aluminium, the models feature a hollow piston. The pumping mechanism rotates through 360° providing maximum versatility in any application. With the removable operating handle measuring only 240 mm in length, these compact lifting jacks will fit in any toolbox.
- Capacity of 13 and 21 tonnes
- Choice of 41 mm or 45 mm stroke length
- Lightweight and compact
- Load return piston
- Nitrocarburised piston rod
- 360 degree positional pumping mechanism
- Internal safety overload valve
| Model Number | Capacity tonnes | Body construction | Stroke mm | Weight kg |
|---|---|---|---|---|
| JCH13 | 13 | Aluminium | 41 | 5.5 |
| JCH21 | 21 | Aluminium | 45 | 8.0 |
| Model Number | Dimensions in mm | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| JCH13 | 257 | 95 | 51 | 281 | 102 | 25 |
| JCH21 | 281 | 114 | 60 | 285 | 125 | 35 |
