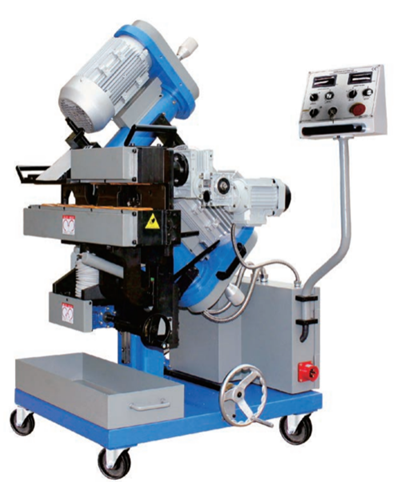

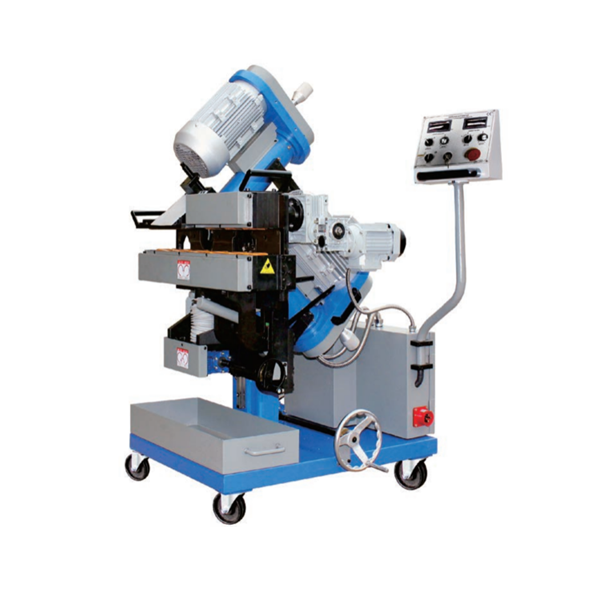

| Double Sided Edge Milling Machine |
| Power supply : AC 380V, 50 Hz |
| Total power : 6480 W |
| Cutting power : 2*3000 W |
| Feed motor : 2*180 W |
| Spindle speed : 500 – 1050 r/min |
| Feed speed : 0 – 1500 mm/min |
| Clamp thickness : 6 – 100 mm |
| Clamp width : ≥ 100 mm |
| Process length : ≥ 400 mm |
| Single bevel width : 0 – 20 mm |
| Above angle : 0o – 90o adjustable |
| Under angle : 0o – 45o adjustable |
| Above bevel width : 0 – 60 mm |
| Under bevel width : 0 – 45 mm |
| Cutter plate : 2*Ø63 mm |
| Cutter Q’ty : 2*6 pcs |
| Worktable height : 810 – 870 mm |
| Travel space : 800*800 mm |
| Net weight : 395 kg |
