The HEP5 series two stage electric driven hydraulic pump range offers the highest flow rate combination in the Hi-Force range. Offering a low pressure flow rate of 17.5 litres/min with automatic changeover to a superb high pressure flow rate of 1.9 litres/min. The HEP5 offers all the features of the HEP2 and HEP3 series with the addition of a 2.2 kW high speed, heavy duty motor, making it the ideal pump unit for all heavy duty applications, requiring a high flow and intensive usage over longer time periods.
- Working pressure 700 bar
- Two stage operation
- Choice of 40 or 60 litre oil reservoir
- Externally adjustable pressure relief valve
- Manual valve with load holding feature fitted as standard (excl. 2-way valves)
| Model Number | Valve Type | Oil Cap litres | Maximum flow rate litres/min | Motor Voltage | Weight kg | |
|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||
| HEP517144 | P-T Plate | 40 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 88.5 |
| HEP517164 | P-T Plate | 60 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 120.0 |
| HEP517244 | 2-way | 40 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 89.0 |
| HEP517264 | 2-way | 60 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 120.5 |
| HEP517344 | 3-way | 40 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 89.0 |

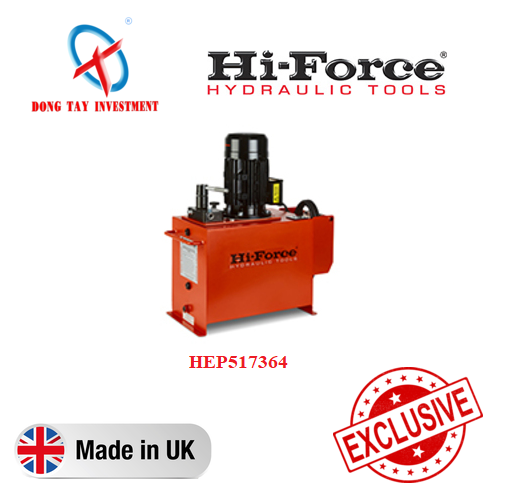

| HEP517364 | 3-way | 60 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 120.5 |
| HEP517444 | 4-way | 40 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 89.0 |
| HEP517464 | 4-way | 60 | 17.5 | 1.9 | 400V 50 Hz/460V 60 Hz – 3Ph | 120.5 |
| Model Number | Dimensions in mm | |||
|---|---|---|---|---|
| A | B | C | D | |
| HEP517144 | 693 | 386 | 306 | 633 |
| HEP517164 | 713 | 407 | 406 | 656 |
| HEP517244 | 693 | 386 | 306 | 633 |
| HEP517264 | 713 | 407 | 406 | 656 |
| HEP517344 | 693 | 386 | 306 | 633 |
| HEP517364 | 713 | 407 | 406 | 656 |
| HEP517444 | 693 | 386 | 306 | 633 |
| HEP517464 | 713 | 407 | 406 | 656 |
